iMM-6
iDevice Calibrated Measurement Microphone
BUY NOW $39.90
+ Delivery $11.85
Australia Wide
Quick Overview

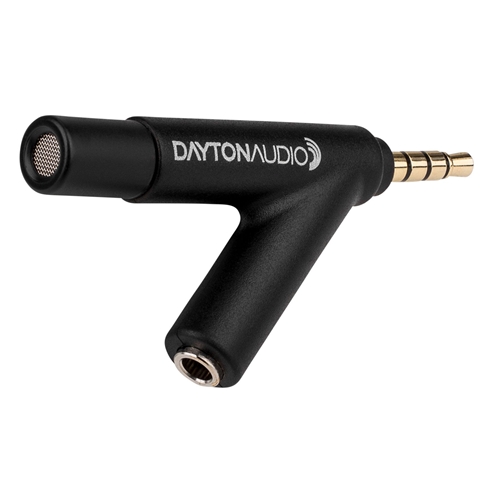

Turn your iPad, iPhone, or iPod touch into a laboratory grade audio measurement device with Dayton Audios iMM-6 iDevice calibrated measurement microphone.
Product Highlights
Precision condenser microphone for critical measurement
For use with Apple iPad, iPhone, iPod Touch via 3.5mm TRRS headset jack
Compatible with Android and Windows Phone devices with TRRS jack
Headphone/Line Out pass-through jack for test signals or listening
Kickstand feature elevates and angles device and microphone capsule
True omnidirectional pattern with calibrated flat frequency response
Rugged construction with high-quality components
Product Description
The Dayton Audio IMM-6 is a professional-quality measurement and recording microphone that is designed to work with the entire suite of Apple “iDevices” – iPad, iPhone, and iPod. The rugged construction and compact size make it the perfect companion for audio professionals who must work on-location performing acoustic analysis, monitoring audio levels, or recording. Each IMM-6 is individually hand-calibrated using a laboratory-standard measurement microphone, for consistent, repeatable measurements that match the level of precision previously offered only by expensive stand-alone microphones.
Dayton Audios IMM-6 is also compatible with Android and Microsoft devices that use a 3.5 mm TRRS jack. A headphone/line-out is built in for monitoring the recorded signal, and a kickstand elevates and angles the measurement capsule for more direct measurements. Each IMM-6 is ruggedly built with high-quality components. A sturdy carrying case with foam insert is included.
Specifications:
• Capsule type: Precision 6 mm electret condenser • Polar Response: True Omnidirectional • Frequency response: 18-20,000 Hz (Calibrated) • Impedance: 200 ohms • Sensitivity at 1 kHz into 1K ohm: 10 mV/Pa (-40dBV, re. 0dB = 1V/Pa) • Maximum SPL for 1% THD @ 1000 Hz: 127 dB • S/N ratio: 70 dB (A-weighted, varies depending on host device) • Connector: Gold-plated 3.5 mm TRRS
